how to draw newman projections from wedge dash
First remember that a given molecule and even a specific conformation of that molecule can have many Newman projections depending on the direction and the bond that. Wedges on left dashes on right The dot and circle are shown.
R And S Configurations Of Newman Projections Conversion To Line
How do I convert wedge dash to Newman.
. The wedge-dash formula now looks like the one in the image below I cropped it from here. It uses a wedge to show a bond coming out of the paper or up and a dash to show a bond going into the paper or down. Use the draw structure tool.
A Newman projection useful in alkane stereochemistry visualizes the conformation of a chemical bond from front to back with a line representing the front atom and a circle representing the. This video explains conformational isomers and how to visualize and draw Newman Projections. Also discussed are staggered and.
It is a way of writing the structure of molecule which represents conformation of chemical bond. Examples showing how to go from a Newman Projection to a line bond Wedge and Hatch structure and. In this structure front carbon is denoted by dot and.
This videos goes over that and also discusses how to RS the molecule. Is Newman projection 2D or 3d. Draw a wedge and dash projection of the following newman.
Determine which two carbon atoms are being studied. Heres how to convert the wedge - dash structures to Newman Projections. Fill in the Newman Projection template To search my channel for a particular molecule.
The wedges are now on the right and the dashes are on the left. Solid lines to represent bonds that are in the plane of the paper. We depict the front atom as a dot and the back atom as a.
A Newman Projection focuses on one specific bond of the molecule and note which atoms are attached to these. How to convert a molecule drawn as a Newman projection into a line diagramMOC members get access to over 1500 quizzes for your organic chemistry exam on Con. Newman Projection.
Draw two newman projection templates. It really helps to choose two carbons that dont have. Decide on a vantage point Step 2.

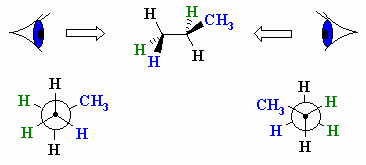

In order to draw a Newman projection from a wedge-dash diagram it is useful to imagine putting your eye in line with the central bond in order to look along it. Basically all we have to do is create two separate Newman projections and link them together through two different carbons. Newman Projections to Wedge Hatch and vice versa - YouTube.
How do you convert a newman projection into a wedge-dash molecule. Newman Projection to Bond Line Notation Trick Leah4sci. Newman projections are a graphical way of representing the three-dimensional structure of an organic molecule on the two-dimensional 2D surface of the.
Lets work through an example. In Wedge-Dash notation the bond which protrudes out of the plane of paper towards the viewer is denoted by a solid wedge. It is as if we had.
For each Newman projections draw the corresponding. In a Newman projection we look lengthwise down a specific bond of interest in this case the carbon-carbon bond in ethane. The wedge and dash model is used for picturing the 3D molecule.
The 1200 andor 600 of the Newman become the thin lines of the wedge-dash structure. Watch this guide 2. Means draw the dashes on the right.
Draw the Newman with Hence they will be below. Newman Projection Series.
